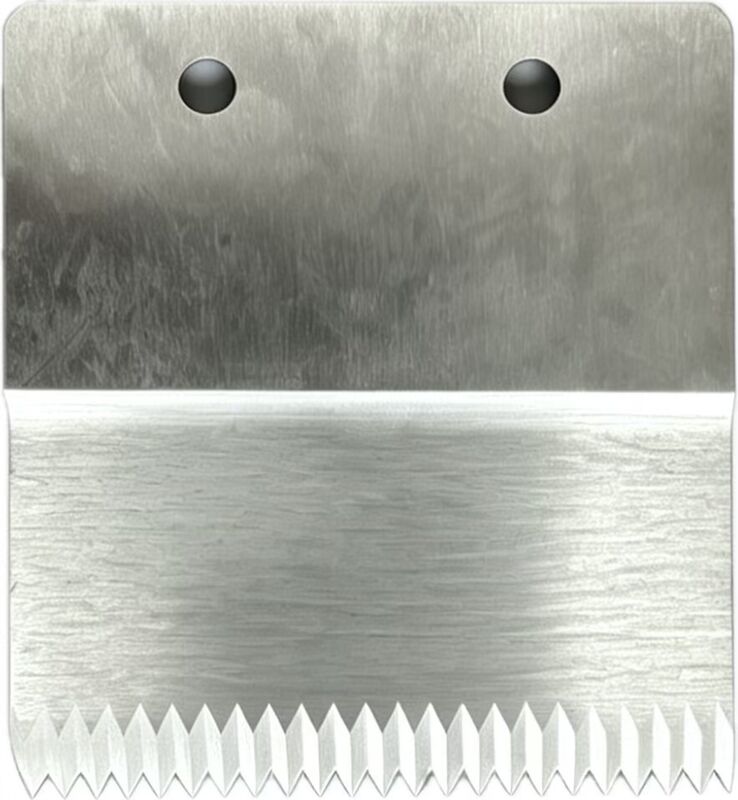

Custom Serrated Industrial Cutting Blade with Drawing-Specified Tooth Profile

Custom Serrated Industrial Cutting Blade

A custom serrated cutting blade should match both the machine’s installation requirements and the material being processed. The blade outline, tooth geometry and mounting dimensions form a complete specification; matching only the overall length is not sufficient.

For a replacement or new equipment project, provide a dimensioned drawing and application details to define the required blade configuration.

Address Uneven Cutting and Incomplete Separation

Material snagging, rough edges and incomplete cuts may result from worn teeth, unsuitable edge geometry or incorrect machine settings. Before changing the blade specification, check the holder, alignment, cutting clearance and material support.

When reviewing an existing blade, identify whether the main problem is edge wear, tooth chipping, material buildup or poor separation. Each condition provides different information for selecting the replacement.

Define the Serrated Edge

Tooth pitch describes the spacing between teeth, but it does not fully define the cutting edge. Tooth height, tip shape, root geometry and bevel orientation also need to be recorded.

A complete profile drawing helps establish how the blade contacts the material and how the cutting edge sits within the machine. Include any required tolerances and reference surfaces so that the specification can be checked consistently.

Technical Specification Checklist

Final manufacturing dimensions and material requirements should be agreed before production.

Match the Specification to the Application

Replacement Blades

Compare the existing blade with the machine drawing. Record mounting dimensions and edge position, including any changes introduced during previous repairs or sharpening.

New Cutting Assemblies

Define the available installation space, cutting motion, workpiece support and required cut result. These details help establish the blade outline and tooth configuration.

Troubleshooting an Existing Process

Provide photographs of the worn edge and the resulting cut. Include the material type, thickness, operating frequency and any recent changes to the machine or substrate.

Information Needed for a Quotation

• A dimensioned drawing or details of the existing blade.

• Material being cut, including thickness and composition.

• Required blade material and hardness, if known.

• Machine model and mounting arrangement.

• Current cutting problems or required edge quality.

• Order quantity and any inspection requirements.

Frequently Asked Questions

Can a blade be selected from a photograph alone?

A photograph helps identify the general shape, but dimensions, tooth geometry and mounting details are needed to establish the replacement specification.

Will a harder blade always perform better?

No. Hardness must be considered together with material toughness, edge geometry and cutting conditions. Increasing hardness alone may not resolve wear or chipping.

Is a serrated blade suitable for every cutting process?

No. Suitability depends on the material, machine design and required finished edge. Confirm that the equipment and process call for a serrated profile.

What should I provide if the existing material grade is unknown?

Send the available drawing, machine details, application conditions and a description of the current blade’s performance. Identify the material grade as unknown rather than selecting an assumed equivalent.

Send your drawing, application details and required quantity to Hengye for specification review and quotation.
